椎間孔鏡系統基本配置Transforaminal Endoscope System Basic Configuration
主機系統Host System
1. TJ168C高清內窺鏡攝像機一臺TJ168C HD endoscope camera
2. 孔鏡專用型射頻治療儀一臺Dedicated radiofrequency therapy instrument of transforaminal endoscope
3. 24寸高清液晶監視器一臺24 inch HD LCD monitor
4. 高亮度LED光源一臺High-brightness LED cold light source
5. 導光束一支Light Transmitting Bundle
6. 光學卡口一只Optical interface
7. 豪華全金屬醫用推車一臺Deluxe metal medical endoscope trolley

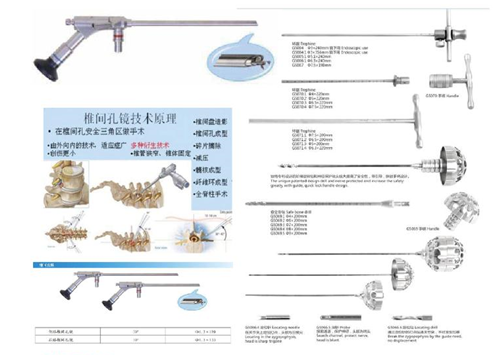

序號No. | 產品名稱 | Product Name | 規格Dimensions |
1 | 椎間孔鏡 | Transforaminal Endoscope | 30° |
2 | 擴張管 | Expansion tube | Φ 8.65mm×190mm |
3 | 環鋸 | Trephine | Φ 4mm×220mm |
4 | 環鋸 | Trephine | Φ 5.5mm×220mm |
5 | 環鋸 | Trephine | Φ 6.4mm×220mm r |
6 | 清洗導絲 | Cleaning guide wire | Φ 0.8mm×350mm |
7 | 金屬錘（中號） | Metal hammer (medium) | |
8 | 鏡下神經拉鉤 | Endoscopic nerve hook | Φ 2.4mm×370mm |
9 | 鏡下神經剝離子 | Endoscopic nerve dissector | Φ 2mm×370mm |
10 | 鏡下探針 | Endoscopic probe | Φ 2mm×370mm |
11 | 鏡下尖錐 | Endoscopic awl | Φ 3mm×370mm |
12 | 工作套管 | Working casing pipe | 30°Φ 7.5mm×160mm |
13 | 工作套管 | Working casing pipe | 45°Φ 7.5mm×160mm |
14 | 工作套管 | Working casing pipe | 70°Φ 7.5mm×160mm |
[注] 因篇幅有限，器械品種較多，詳細了解請垂詢我司或咨詢銷售代表。
[Note] Due to limited space and many types of instrument, please contact our company or consult sales representative for more information and details.
